Turn every head on the street
Some bikes get you there. This one gets you noticed on the way.
- 2 Year Warranty
- Customer Support
- 30-Day Returns
- Fast Shipping

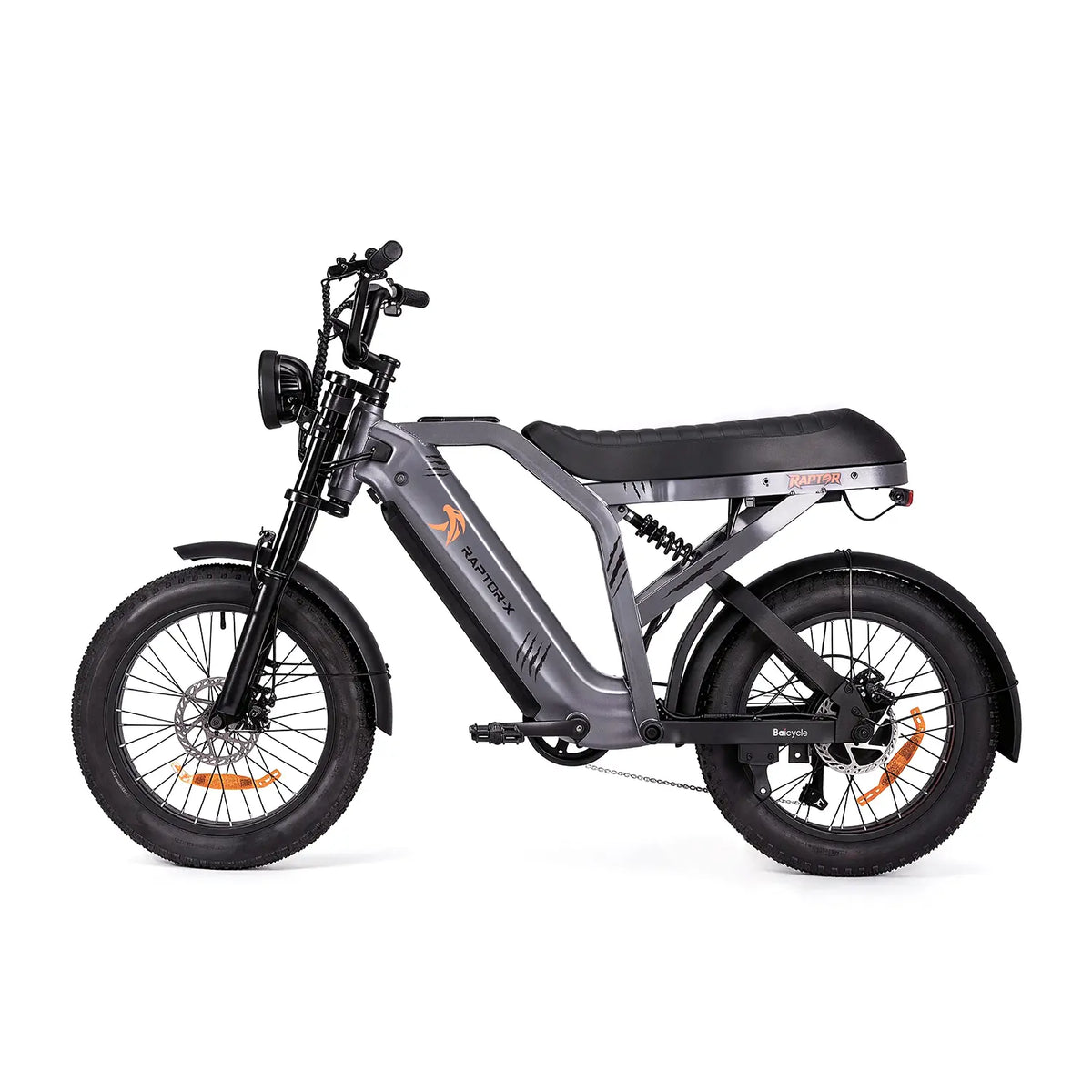

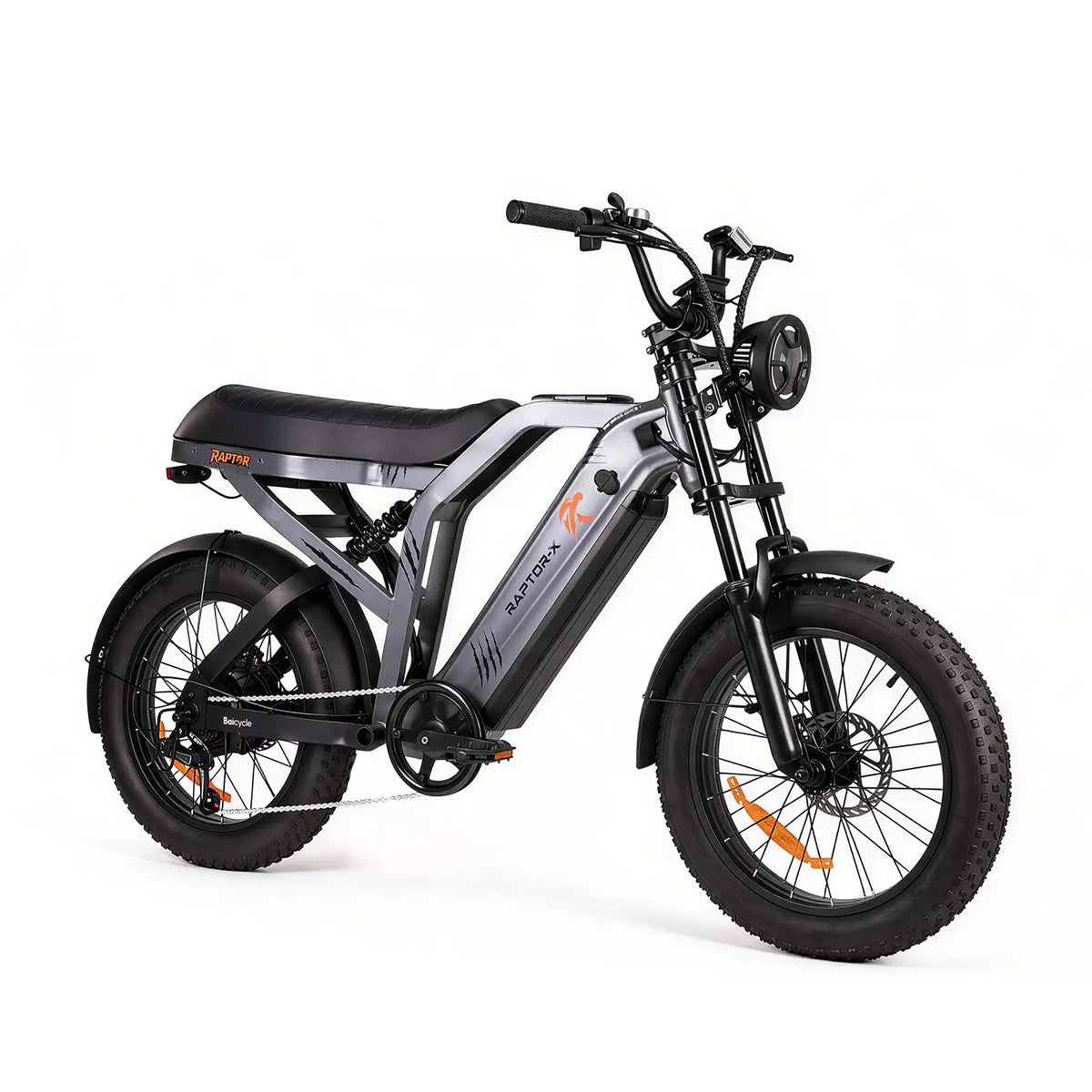

Raptor X Ebike
Disclaimer: It’s the rider’s responsibility to stay informed about local rules, ride safely, and wear appropriate protective gear, including a helmet.
Check the local laws before you purchase a bike or go for a ride. Read the full disclaimer below for more information.
Raptor X Ebike
Sale price$0.00
The RAPTOR wasn't pulled off a catalogue. Every frame is our own — designed from a blank sheet, not an off-the-shelf mould — and shaped around one idea: a fat-tyre ride with the stance of a machine and the manners of a daily commuter. The claw marks raked down the frame aren't a sticker. They're a signature.
Same bloodline, two builds. RAPTOR-S drops its frame low, so anyone can step straight through and go. Both road-legal. Both ready for the everyday run.
Wave goodbye to fuel prices
Skip the pump, skip the queue. Your daily run just got a whole lot cheaper.
Made for everyone who rides
Skip the pump, skip the queue. Your daily run just got a whole lot cheaper.
Better with two
The long moto saddle was made for company. Grab a mate, take the long way, and make the ride the best part of the plan.
What Makes Raptor Different?
Enhanced Traction and Control
A full suspension bike keeps the tires in constant contact with the ground. On bumpy roads or trails, a rigid bike might "bounce" off obstacles, causing a temporary loss of traction. The rear shock allows the wheel to track the terrain smoothly, providing better grip during acceleration, braking, and cornering.
Retro Headlight Design
A robust barrier designed to prevent accidental contact with the rear wheel. Providing a natural and relaxing leg position for long-distance family rides.
Extra-Long Rear Padded Seat
The oversized, circular housing is a direct tribute to mid-century motorcycle culture. It serves as the visual centerpiece of the bike, creating a rugged, "Cafe Racer" or "Scrambler" look that separates it from standard, utilitarian e-bikes.
Intuitive Handlebar Controls
Easily access key e-bike functions through the handlebar-mounted control pad, with clearly arranged buttons for quick and convenient adjustments while riding.
Specifications
GENERAL INFO
| Bike Weight | 49.5 kg |
| Maximum Load | 120 kg |
| Recommended Rider Height | 140–200 cm |
| Estimated Range | Up to 75 km (pedal assist) |
| Recommended Use | Recreational riding, gravel roads, sealed roads, snow and trails |
| Pedal Assist Levels | 0–3 |
| Water Resistance | IPX5-rated |
Frameset
| Frame | Carbon steel |
| Front Fork | Front suspension fork without lockout, 70mm Travel |
| Front Hub Spacing | 135 mm |
| Rear Hub Spacing | 190 mm |
| Frame Style | Step over frame |
Wheelset
| Front Wheel Size | 20 in |
| Rear Wheel Size | 20 in |
| Tyres | 20 × 4.0 in pneumatic fat tyres |
E-Bike System
| Motor Power | 250 W |
| Maximum Torque | 50 N·m |
| Display | Multifunction display |
| Battery | 48 V, 31.5 Ah (1,512 Wh) |
| Battery Weight | TBC |
| Controller | 48 V / 20 A intelligent controller |
| Cadence Sensor | SM-07, 12-magnet, 24-pulse, 5 V, left-mounted |
| Charger | 54 V / 3 A |
| Charging Time | Approx. 12 hours |
| Lighting | Front LED light |
| Maximum Assisted Speed | 25 km/h |
Brakes
| Front Brake | Mechanical disc brake |
| Rear Brake | Mechanical disc brake |
| Front Rotor | 160 mm |
| Rear Rotor | 160 mm |
Drivetrain
| Rear Derailleur | Shimano 7-speed rear derailleur |
| Shifter | Shimano SL-TX50-7R 7-speed shifter |
| Chain | 7-speed chain, 118 links |
| Freewheel | C07A 7-speed freewheel, 14–28T |
| Chainring | 42T, 3/32 in |
| Crankset | SIC2F5P-MT (G5TDO-1), 152 mm steel cranks |
| Bottom Bracket | ZK-S-03 sealed bottom bracket, 1.37 in × 24 TPI, 120 × 177 mm |
| Pedals | HF-899, 9/16 in flat platform pedals |
Cockpit
| Saddle Material | Polyurethane (PU) |
| Handlebar | 680 mm wide; 31.8 mm clamp diameter; 22.2 mm grip diameter |
| Grips | PVC |
| Headset | FJ-B010-1, 28.6 × 44 × 30 mm |
Baicycle Raptor X Ebike FAQ
What is the main difference between the Raptor X and the Raptor S?
The main difference is the frame design. The Raptor X uses a step-over frame for a more stable, sport-oriented riding position, while the Raptor S uses a step-through frame for easier mounting and everyday commuting. Both share the same motor and battery system.
Is the Raptor X more stable than a step-through e-bike?
Yes. The step-over frame design gives the Raptor X a more rigid structure, which improves stability when riding at higher speeds, on uneven surfaces, or under load.
It feels more “planted” on the road compared to step-through commuter-style e-bikes.
Who should choose the Raptor X?
The Raptor X is ideal for riders who prefer a more performance-focused ride, mixed terrain use, and a more traditional MTB/moto-style frame with stronger control and stability.
How far can the Raptor X go on one charge?
Up to 75 km in ideal conditions, with a real-world range of around 45–75 km depending on terrain, rider weight, and assist level.
Is the Raptor X good for hills and heavy use?
Yes. The 50Nm torque motor and rigid frame provide strong hill-climbing ability and stable performance under load.
Is the battery safe and removable?
Yes. It uses a 48V Samsung lithium battery (1512Wh) with a BMS protection system and is removable for indoor charging.
How long does it take to charge?
Approximately 9 hours using the included charger, typically charged overnight.
Is it suitable for rough roads?
Yes. Fat tyres and a reinforced step-over frame provide stability on gravel, uneven roads, and light off-road terrain.
Is assembly difficult?
No. The bike arrives 85% pre-assembled and takes around 30–60 minutes to complete setup.
